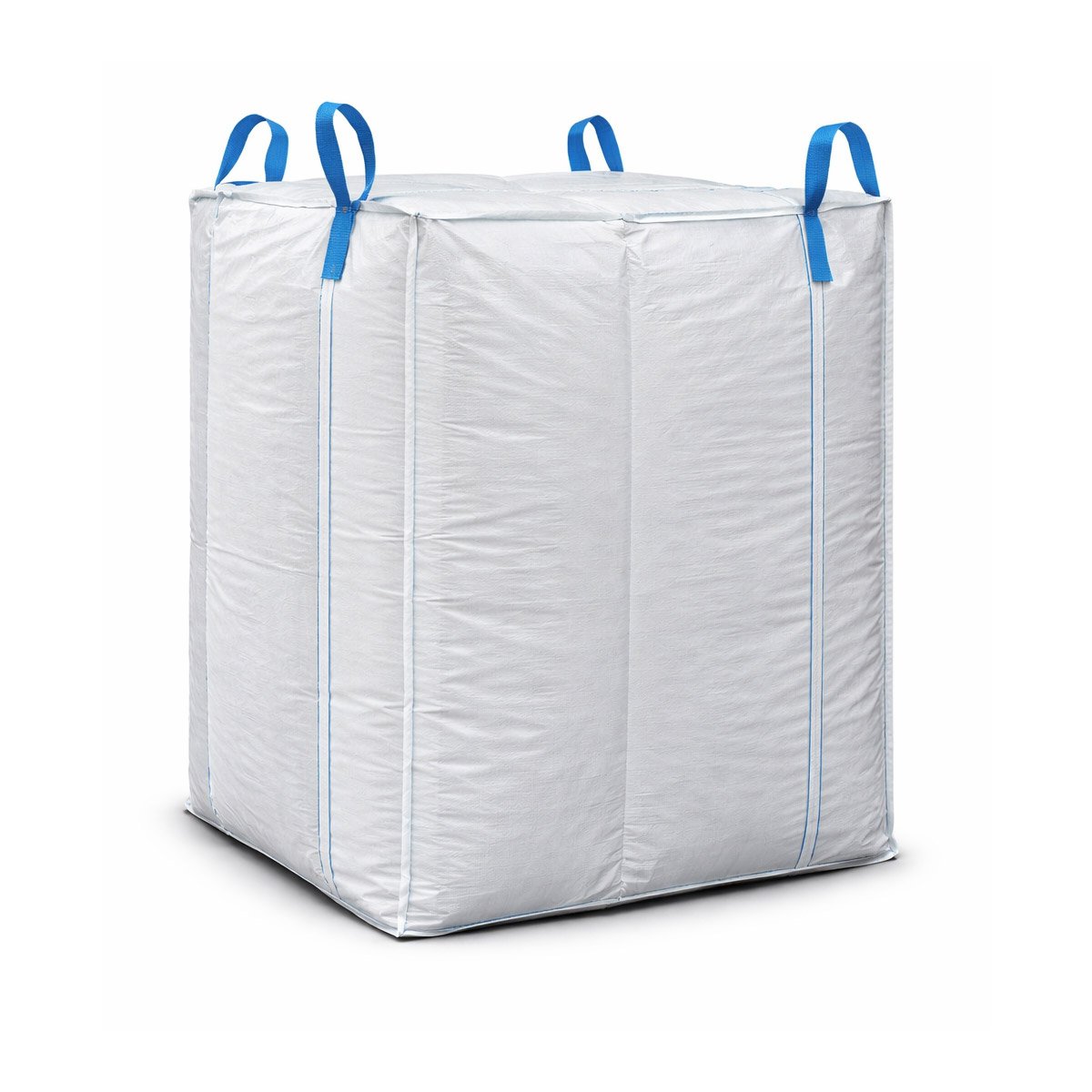

Internal baffle panels keep the bag square when filled, eliminating bulging and maximizing every cubic centimetre of pallet and container space.
All specifications are fully customizable. Contact us to discuss your exact requirements.
| Material | Woven Polypropylene (PP), UV stabilized |
|---|---|
| Safe Working Load | 500 – 2,000 kg |
| Safety Factor | 5:1 or 6:1 |
| Standard Dimensions | 90 × 90 × 110 cm (custom available) |
| Fabric Weight | 170 – 230 GSM |
| Baffle Height | Full-height or partial-height panels |
| Baffle Ventilation | Perforated baffles available for free-flowing materials |
| Top Options | Duffle top, spout top, or open top |
| Bottom Options | Flat bottom or spout bottom |
| Liner | Form-fit PE liner available |
| Testing Standard | ISO 21898 |
Flour, sugar, starch, and specialty food ingredients benefit from the clean, square profile of baffle bags. The tight pallet footprint reduces product movement during transit, and food-grade manufacturing in ISO 22000 certified facilities ensures compliance with CFIA import and handling standards.
Baffle bags are the preferred choice for containerized export shipments. Their square profile fits flush against container walls, allowing more bags per 20ft or 40ft container. For Canadian exporters shipping to Asia, Europe, or the US, baffle bags deliver measurable freight savings on every shipment.

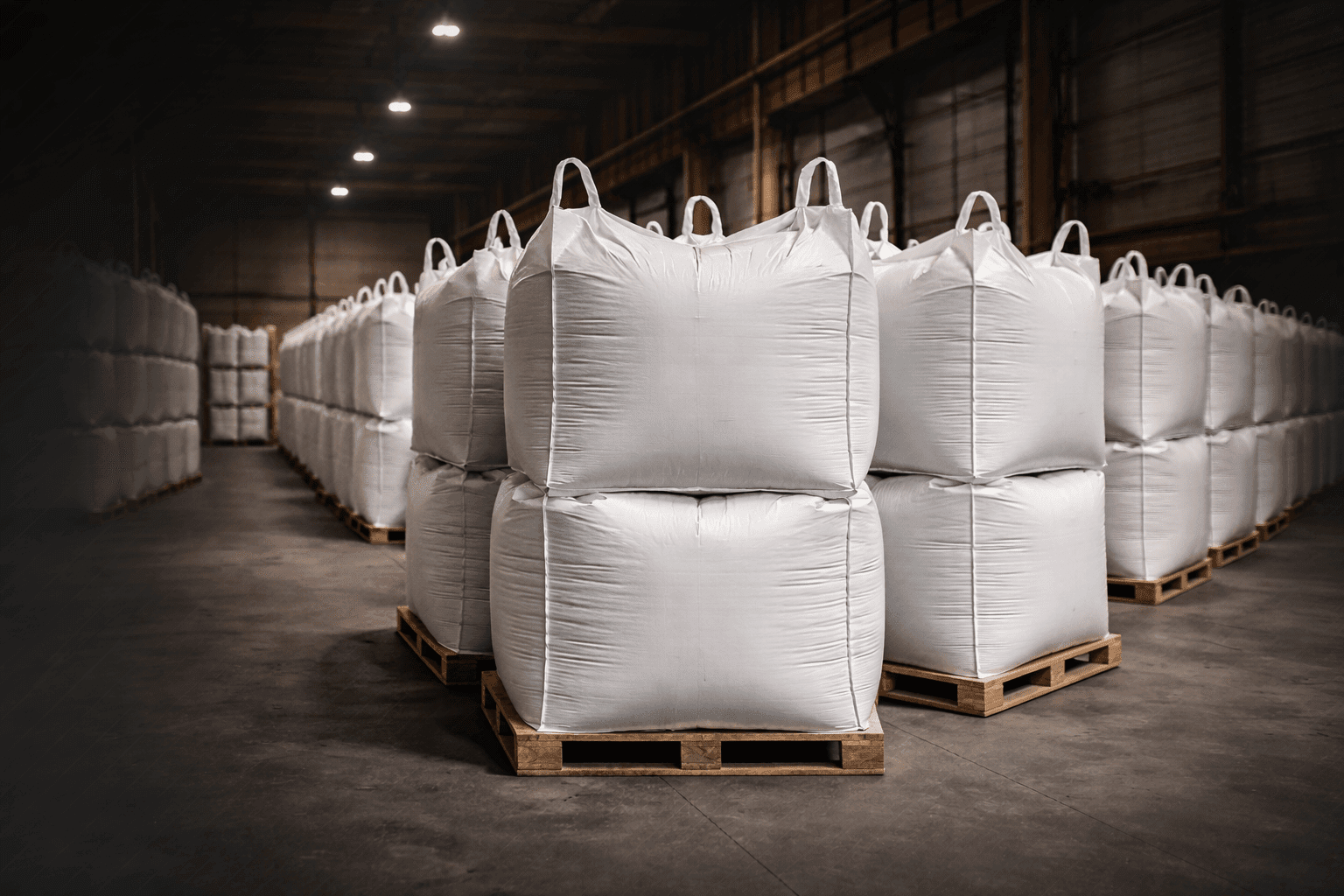

Square bags stack neatly two or three high on racking or floor storage without the leaning and instability that round-fill bags cause. This reduces the warehouse footprint required per tonne of stored material and improves safety for forklift operators working in tight aisles.
More Products
Custom woven polypropylene sacks from 5–50 kg. Food-grade, printed, and laminated options for every industry.
Learn More →UV-stabilized woven polypropylene sleeves and rolls for protecting wood products during storage and transport.
Learn More →Bespoke dimensions, specialty printing, and unique configurations engineered to your exact specification.
Learn More →Baffle bags typically hold 15–20% more product in the same dimensional footprint compared to a standard FIBC that bulges when filled. In container shipping, this can mean fitting 2–4 additional bags per 20ft container, which adds up to significant freight savings over time.
Yes. Baffle bags work well with powders, granules, and pellets. For fine powders, we recommend a form-fit PE liner inside the baffle bag to prevent material from sifting through seams. Perforated baffles are available for free-flowing materials to aid filling.
Custom baffle bags are manufactured to order with a typical lead time of 4–6 weeks from order confirmation. We can accommodate rush orders in some cases — contact us to discuss your timeline.
Baffle bags can be designed for single-trip or multi-trip use. Multi-trip baffle bags use heavier fabric and reinforced stitching to withstand repeated filling and discharge cycles. Let us know your intended use and we will recommend the appropriate construction.
